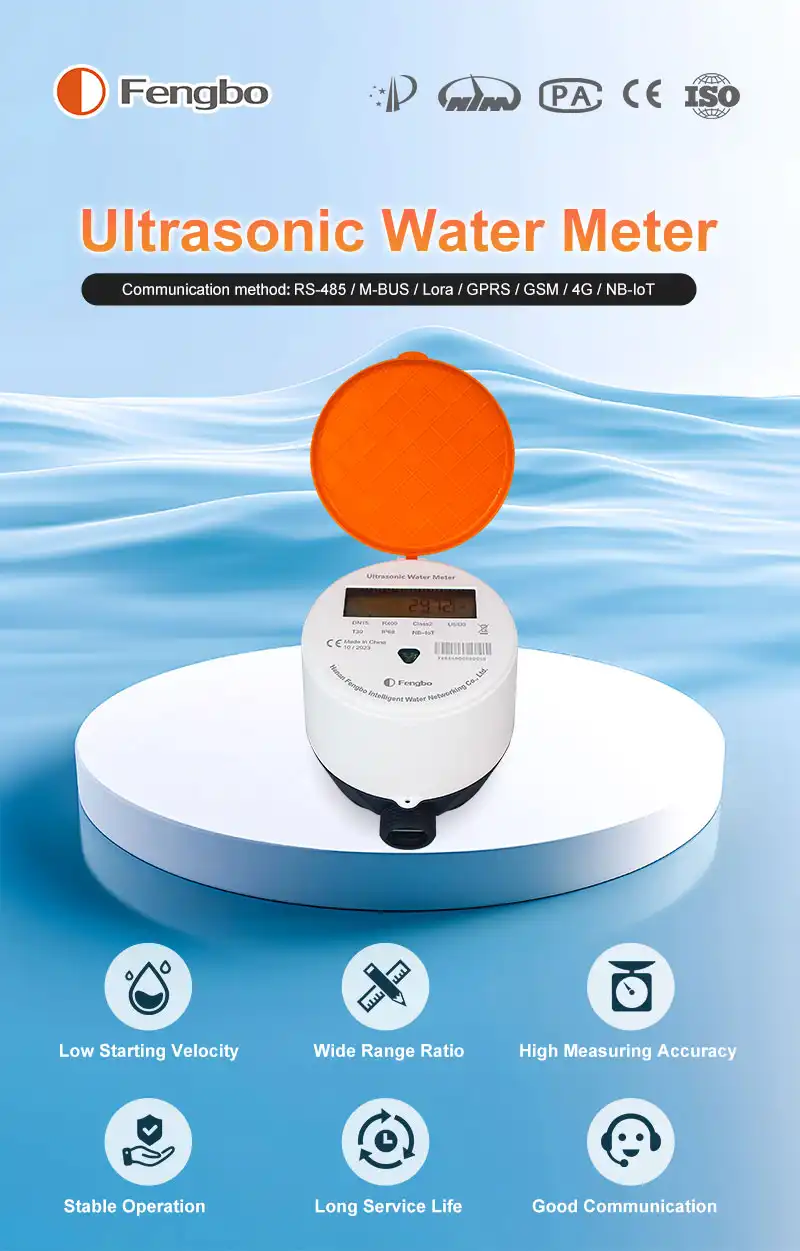

LoRaWAN Smart Ultrasonic Water Meter
Water Leak Detection.
LoRaWAN ( Customizable )
8 Years Battery powered.

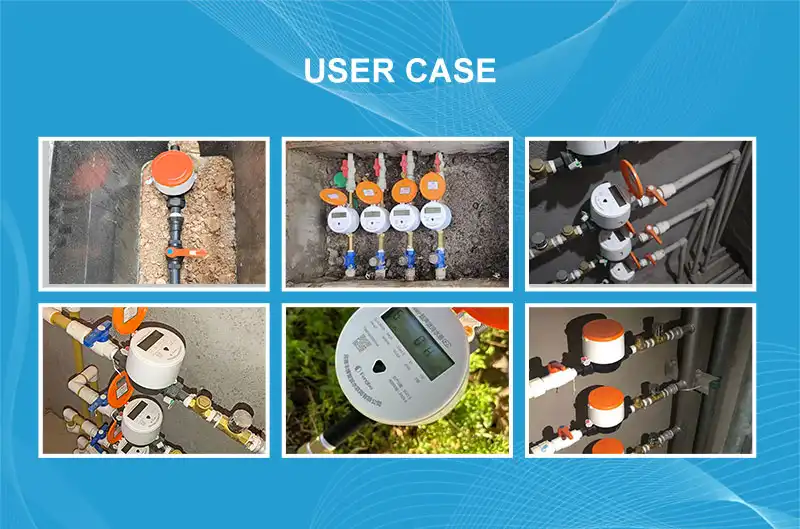

Suitable for municipal, residential, apartment, and commercial applications.
DN15/DN20 Smart Ultrasonic Water Meter
Suitable for municipal, residential, apartment, and commercial applications.

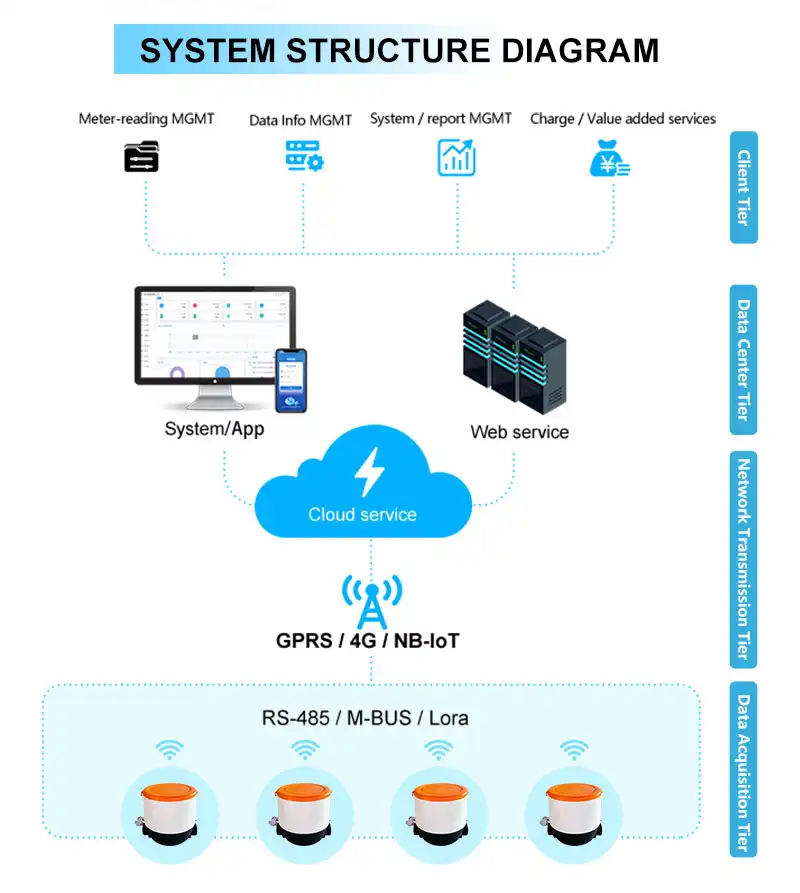

1. LoRaWAN communication technology, featuring functions such as remote meter reading and water usage anomaly alerts.
2. With self-diagnosis function, water leak alarm, flow sensor fault alarm, measurement over range alarm, and battery low voltage alarm.
3. The water meters support OEM customization. Fengbo smart ultrasonic water meters have been deployed in over 50 countries and regions worldwide.
4. The software system support: protocol docking, API development, payload format documentation (decoder), OTA update.
5. The alarm function support: Water leak alarm, low battery alarm, reverse flow alarm, empty pipe alarm, temperature alarm, overload alarm.
| Technical Parameters | |
|---|---|
| Meter Type | FB-SWMP |
| Caliber | DN15 / DN20 |
| Pipe Material | Nylon |
| Valve Control | Non |
| Communication | LoRaWAN |
| Battery Life | 8 Years |

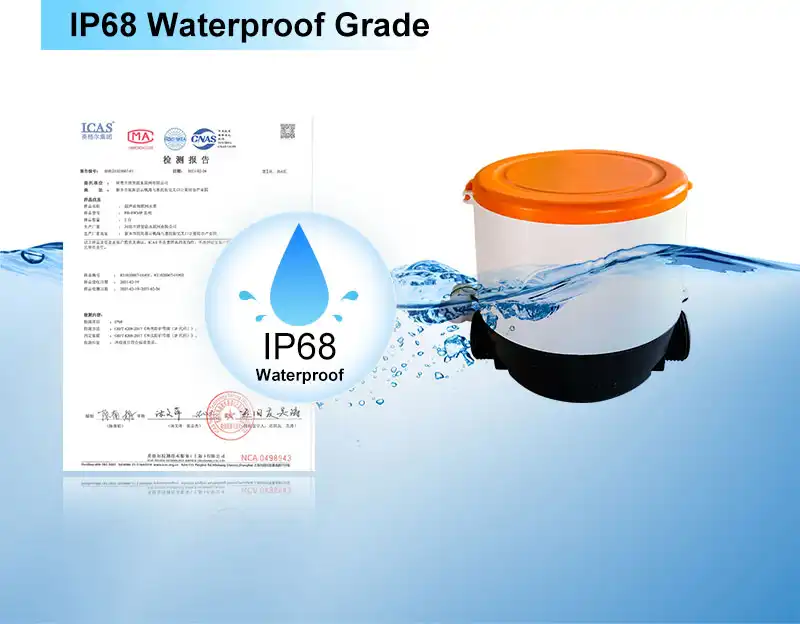

| Protection Level | IP68 Waterproof |
| Upload Frequency | Default 24 hours |
| Installation | Horizontal / vertical, Thread, U5 / D3 |
| Antenna | Built-in / external ( customizable ) |
| Pressure Rating | 1.6 MPA |
| Max Pressure Loss | △P63 |
| Accuracy Level | Class B / 2 |
| Range Ratio | R250 |
| LCD Display | 9-bit digits |
| Historical Data | 24 months |
| Units of Measurement | Default m³ ( gal / L Optional ) |
